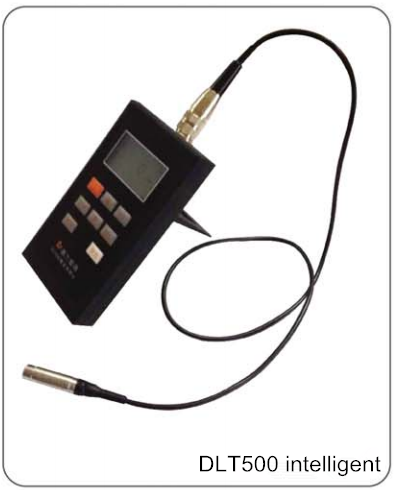

Coating Thickness Gauge DLT500




DLT500 coating thickness gauge is an economical model. It can fast, exactly and non-destructively measure the thickness of coating. It is widely used in laboratory and workplace.

◎Optional probes(N3, CNO2,F400, F1, F1/90°,f10, N1, N400,FN)
◎Integrated with printer and computer communication software for convenient use
◎Three calibration methods: single point calibration and second point calibration and basic calibration
◎Continuous measure and single measure
◎500 groups memory

Technical Specification
Measuring Range: F1, N1, F1/90°: 0 - 1250 µm
               F400, N400: 0 - 400 µm
               F10: 0-10mm
               FN: 0-1250mm
Measuring Accuracy: F1, N1, F1/90°: ±(1%H+1µm),
                  F10: ±(1%H+10µm),
                  F400, N400: ±(1%H+0.7µm),
                  FN(Magnetic induction): ±(1%H+1),
                  FN(Eddy current):±(1%H+1.5),
Resolution: 0.1µm(measuring range<100µm),
1µm(measuring range>100µm)
Calibration method: single point calibration and
second point calibration and basic calibration
Power Supply: “AA” size battery x 2
Dimensions: 150*80*30mm Weight: 300g

Optional Probes And Technical Specification
Probe model F400 F1 F1/90º F10 FN   N400    N1 CN02 N3 FN
Operating principle Magnetic induction Eddy current
Measuring range µm 0-400 0-1250 0-10000 0-1250 chromeplate on copper 0-40 10-200 0-3000 0-1250
0-400 0-1250
Low range resolution µm
1 1 10 1 1 1 1 1 1
Accuracy Range ±(1%H+0.7) ±(1%H+1) ±(1%H+10) ±(1%H+1) ±(1%H+1) ±(1%H+1) ------ ±(1%H+1) ±(1%H+1.5)
Measuring conditions Min curvature of the min area (mm) Convex 1 1.5 Flatten 10 Convex 1.5 Convex 1 Convex 3 Flatten Convex 3 Convex 3
Diameter of the min area (mm) φ3 φ7 φ7 Φ40 φ7 Φ4 Φ5 φ7 φ5 Φ5
Critical thickness of substrate (mm) 0.2 0.5 0.5 2 0.5 0.3 0.3 unlimited 1 0.3
